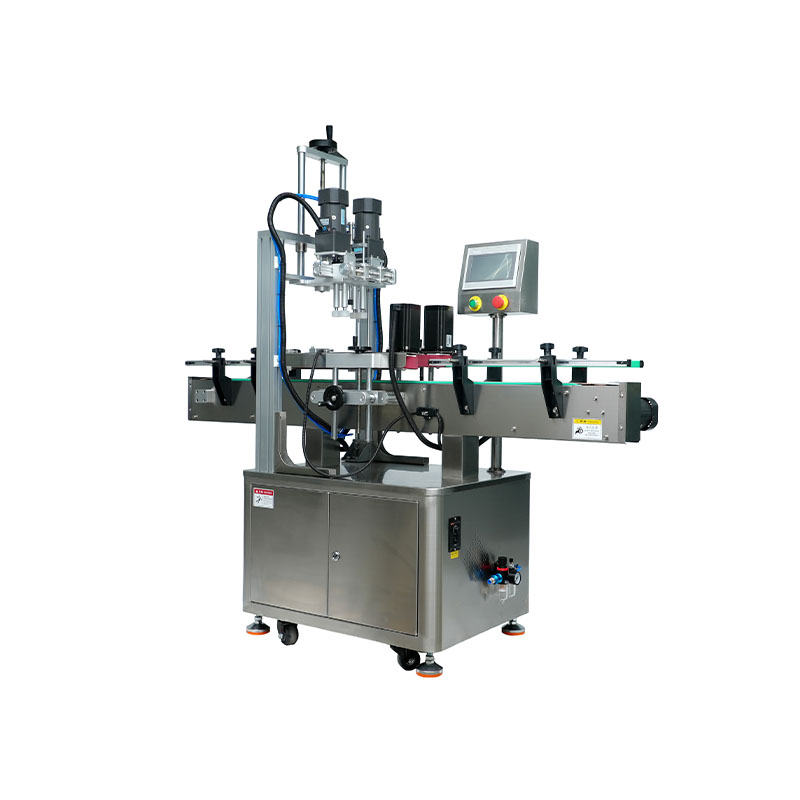

Automatic Capping Machine for Bottles
The fully automatic four-wheel capping machine is a highly efficient and stable sealing device widely used in industries such as food, beverages, pharmaceuticals, chemicals, and cosmetics. It is suitable for tightening or loosening various types of caps, including plastic, aluminum, and metal closures. Its key feature is the use of four capping wheels operating synchronously, ensuring high-speed and precise capping performance.
Hot selling products
Product Details
A capping machine is packaging equipment that automatically tightens bottle caps through mechanical or servo control systems, including cap feeding, positioning, tightening, and inspection.

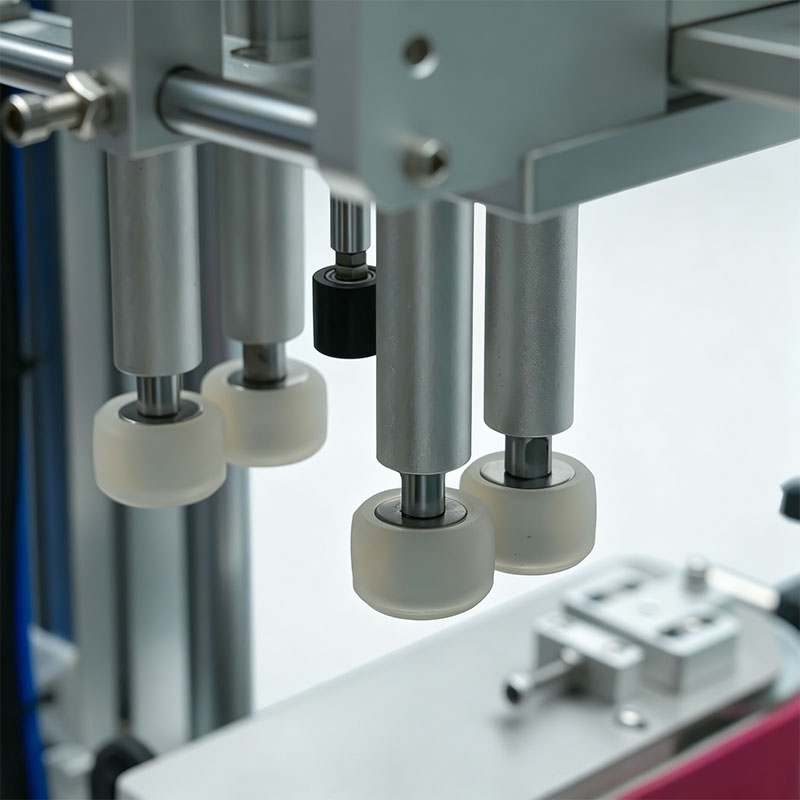

Automatic Cap-Tightening Machine

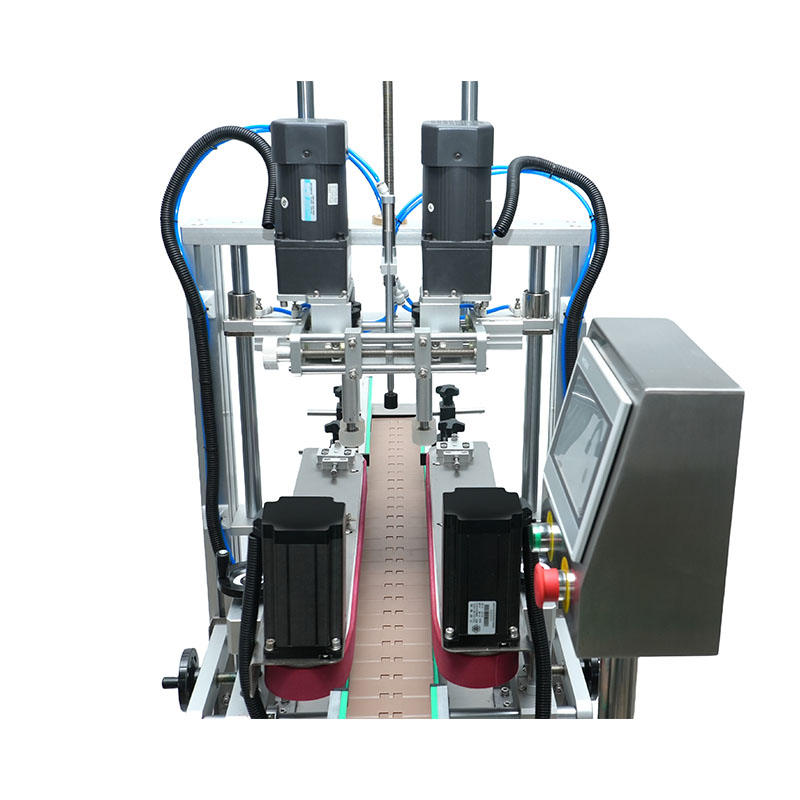

Equipped with four rubber sealing heads, suitable for bottle caps of various shapes.As the bottles enter the capping zone via the conveyor belt, four rubber wheels symmetrically grip the caps from both sides and rotate at high speed, using friction to smoothly and rapidly screw the threaded caps down tight.

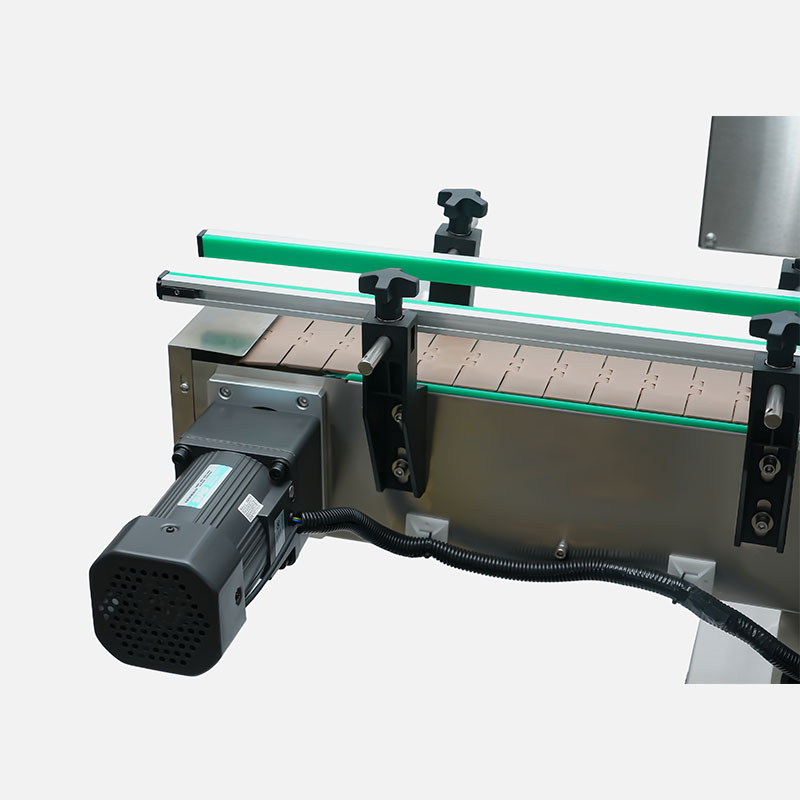

Stainless steel slat chain conveyor
The high-performance variable-speed motor enables synchronized control with the capping machine's cap-gripping, cap-placing, and tightening speeds. Fine-tuning via a variable frequency drive allows for precise adjustment of the bottle feeding pace, preventing issues such as toppled bottles, liquid splashing, or missed tightening caused by speed mismatches.
Touchscreen control panel
Equipped with an intuitive control panel supporting both Chinese and English interfaces, it allows for real-time adjustment and setting of torque, capping speed, and gripper stroke.

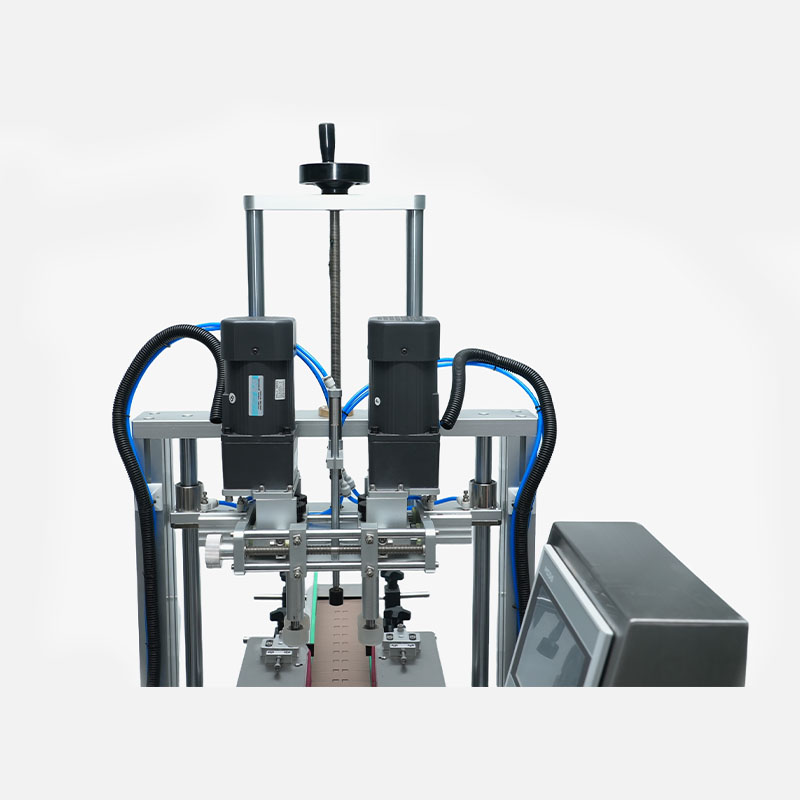

Pneumatic or electric motor
The equipment is usually equipped with a pneumatic or electric motor, can lock multiple bottles per minute, and is compatible with a variety of bottle caps. The main body of the fuselage is made of stainless steel and aluminum alloy, which has good wear resistance and corrosion resistance.
Technical Specifications
| Item | Specification |
| Machine Type | Automatic Four-Wheel Capping Machine |
| Function | Bottle cap tightening / sealing |
| Capacity | 1200–1500 bottles/hour |
| Applicable Caps | Plastic caps / Aluminum caps / Metal caps |
| Applicable Bottles | Various bottle shapes and sizes |
| Control System | PLC Control |
| Operation Interface | Touch Screen (HMI) |
| Capping System | Four-wheel synchronous friction capping |
| Torque Control | Adjustable (servo/magnetic clutch) |
| Detection System | No bottle, no capping sensor |
| Material | SUS304 Stainless Steel |
| Main Motors | Dongbang / Saiyan motors |
| Power Supply | 220V / 380V (optional) |
| Machine Size | 1930 × 1120 × 1340 mm |
| Warranty | 1 year |
